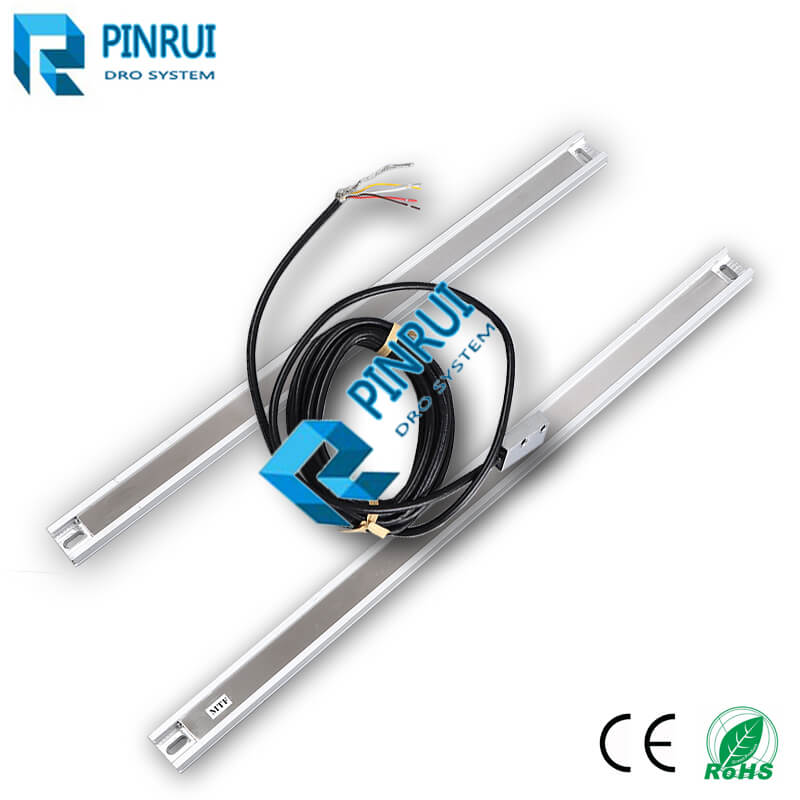

Magnetic linear scales

Magnetic linear scale encoder for boring grinding althe milling machineS

Resolution: 5µｍ

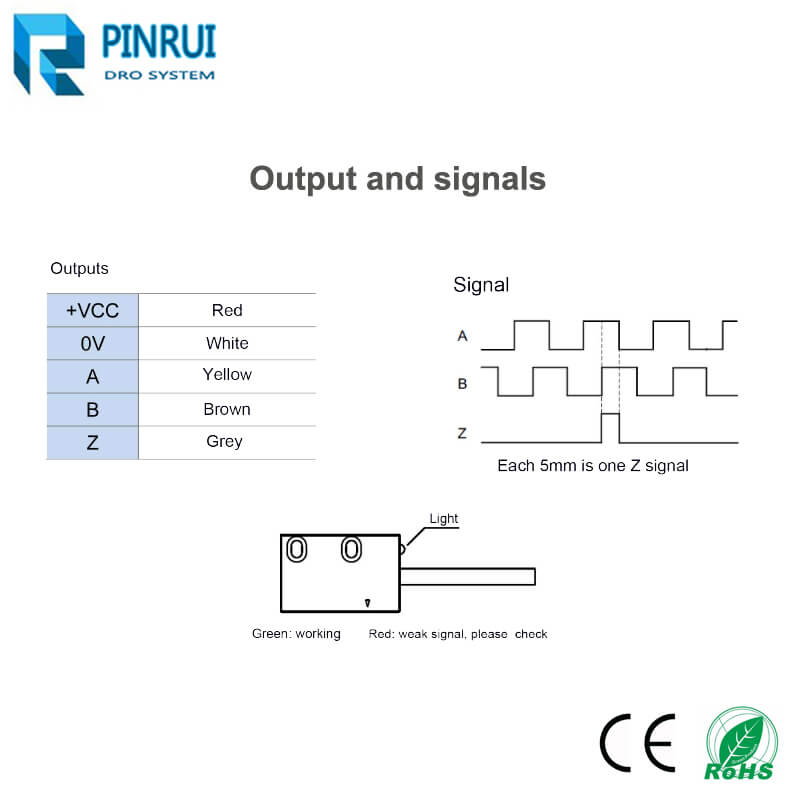

Output signal: A/B/Z
work speed: Max 25m/s
available length: 0-30M
Product description: Magnetic linear scale head reader manufacturer, sales@prdro.com
INQUIRY

Measuring length: Max.30000 mm

Accuracy: ± 50μm/m

Resolution: 5μm

Max. speed: 25 m/ s

Power supply: 5~30V DC

Protection Digree: IP68

EMC: Electrostatic discharge(ESD: EN61000-4-2)；

Radio-frequency(EN61000-4-3, EN61000-4-6)；

Electrical fast transient(EFT: EN61000-4-4)；

Surge(EN61000-4-5)；

Power frequency magnetic field(EN61000-4-8)；
