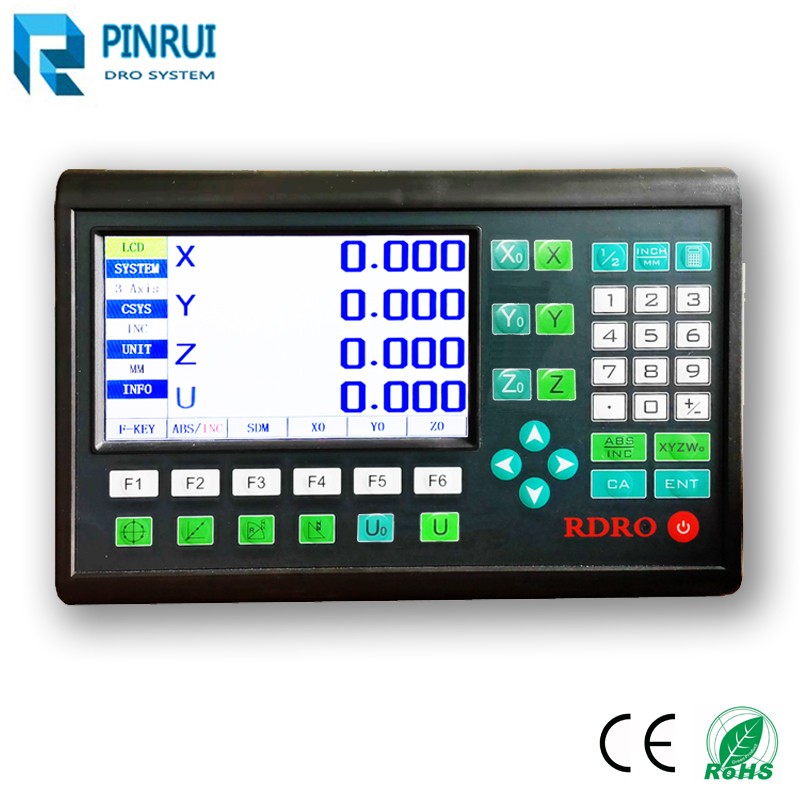

3.5-inch LCD digital readout(DRO)(WB-50)

using 3.5-inch real color LCD screen, mechanical keys, large font display, after power failure to remember the current position wide voltage input range, input voltage AC 90V-240V, all can work normally. Optional RS232 interface, convenient to communicate with computer or PLC, feedback data. LCD digital readout(DRO) can be installed on a variety of machine tools or equipment, such as lathes, milling machines, grinding machines, boring machines, spark machines, fine hole discharge machines.

with a grating scale for the machine tool to display measurement positioning.

Features:

Zero Cleaning

reset

mm / inch mode

200 sets of coordinates

memory off;

Center of1 / 2

linear error compensation

sleep mode

pure 200 sets of Sdm datum;

ABS / INC mode

calculator

circle drilling

oblique line drilling

inclined plane processing

circular arc processing

lathe (matching)

rectangular light output

digital filtering

vibration filtration

radius / diameter

Specifications:

Screen size: 3.5” true color

Resolution:0.1,0.5,1,5,10,25,50,100µm

working volgae:12V DC

Output signal:TTL

Input axis: 1, 2 or 3

Max Response frequency: 1M HZ

Working condition:­0℃\+50℃

EMC: Electrostatic discharge(EN61000-4-2)

Radio frequency (EN61000-4-3,EN61000-4-6

Electrical transient(EFT:EN61000-4-4)

Surge(EN61000-4-5)

Power frequency magnetic field(EN61000-4-8)
