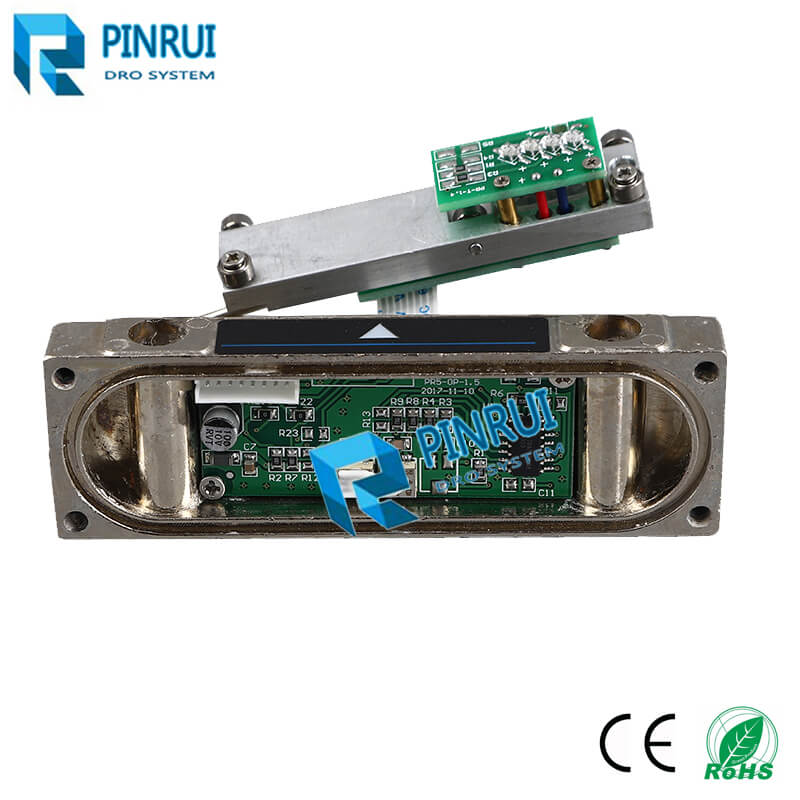

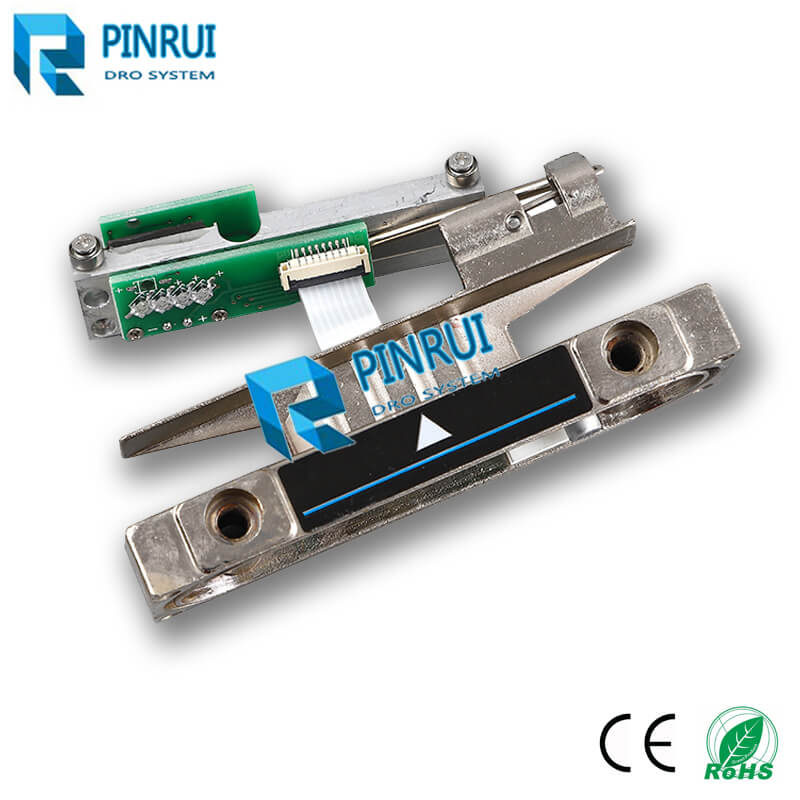

linear scale encoder dro system head reader WTB seires

Resolution:1um\5um
output siginal: TTL\RS422
work speed:30-60m\m
Product description: PINRUI high quality linear scale optical linear scale magnatic linear scale with dro system from China. sales@prdro.com
INQUIRY

option: ±(3 +3L0/1000)m or above accuracy

standard: 2 TTL square wave 0°and 90

option: 4 TTL square wave

0°、90°、180°、270°

Resolution:1um or 5um

Work Speed:60m\min

Travel Length(mm):50-3000m

Phase error: 90°±15°

Operating temperature: 0℃—40℃

Storage temperature: -20℃—50℃

Normal size: L0=50—1000mm, scales are available in every 50 mm

L0=1100-3000mm, scales are available in every 100mm

Max.travel=normal size +30mm(=<500mm)

signal cable=2.5m

Max.travel=normal size +30mm(500mm—900mm)

signal cable=3.5m
