LED Digital readout(DRO) WE-6800 Series

using 24-bit dedicated counting integrated circuit, counting speed up to 5m/s, remember the current position after power failure, wide voltage input range, input voltage AC 90V-240V, all can work properly. Optional RS232 interface for easy communication with computer or PLC and data feedback. The digital readout(DRO) can be installed on a variety of machine tools or equipment, such as lathes, milling machines, grinding machines, planing machines, etc., with a grating scale to display the measurement positioning for the machine. The power supply anti-interference ability and signal anti-interference ability reach more than 2200V, baud rate 9600 wide voltage input range AC 90V-240V, both can operate normally.

With aluminum mounting bracket

Dual-axis XY/Tri-axis XYZ display optional

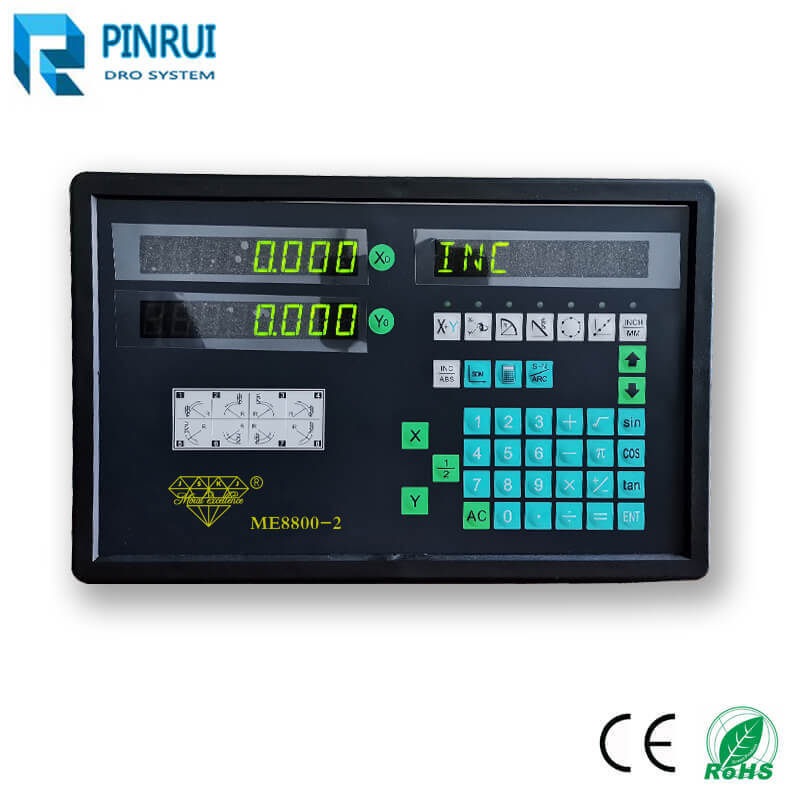

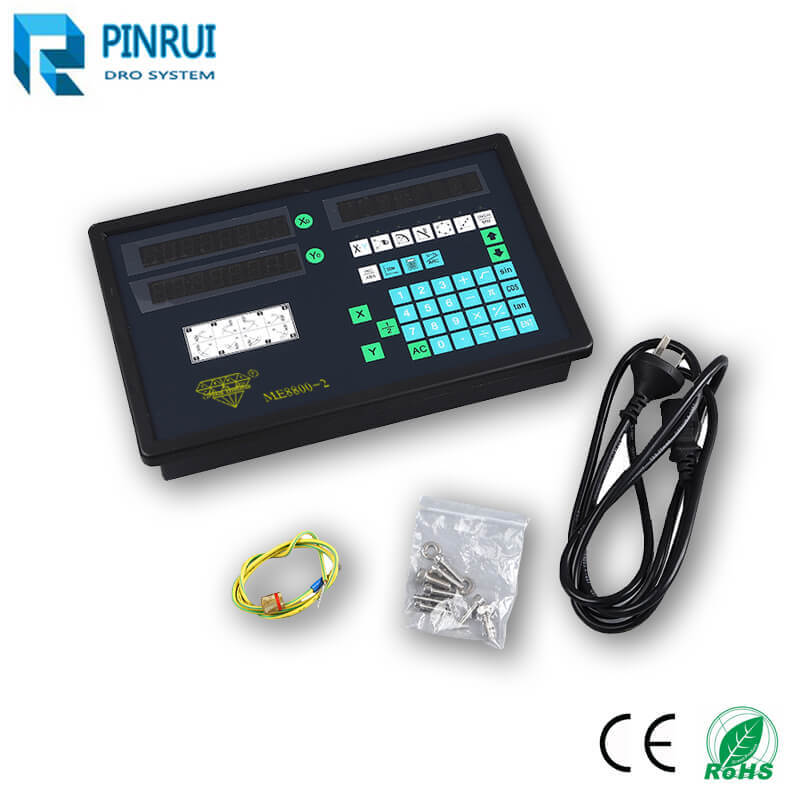

illustration of led dro panel 1

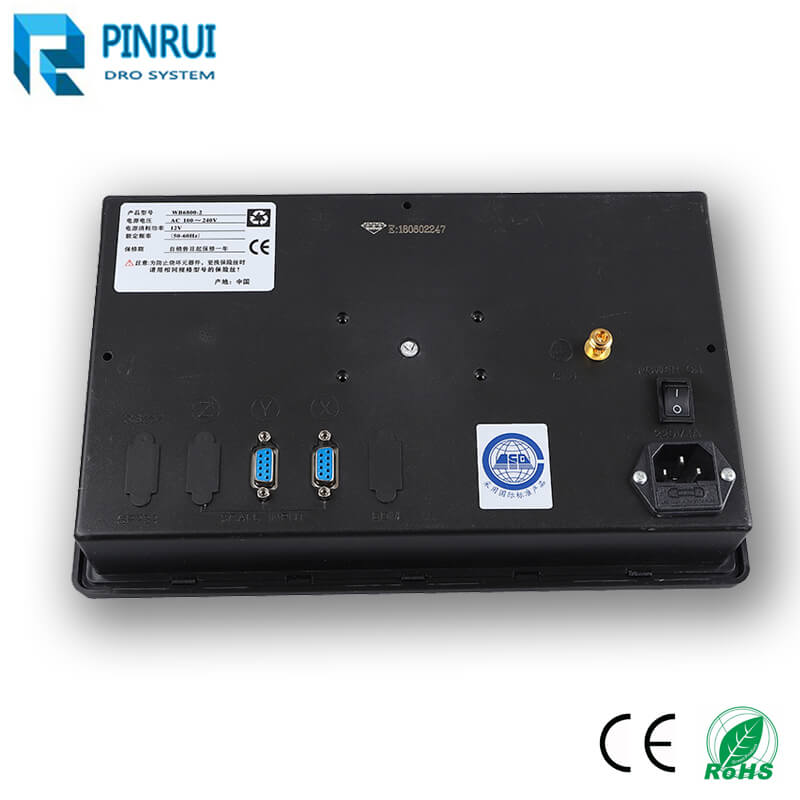

illustration of led dro panel 2

________________________________________

Features

Coordinate clearing zero,

Centering,

Number setting

ABS coordinates, INC coordinates,

200 sets of user coordinates

Shrinkage rate

Calculators

Finding the mechanical origin (RI)

Circumferential fractional aperture

Slash aperture

Circular arc machining

Bevel processing

EDM processing (optional)

RS232 communication (optional)

Edge tracing treatment (optional)

________________________________________

Specifications.

Input scale signal: quadrature TTL square wave, frequency <2MHZ, current >1mA

Resolution: 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm

Number of axes: 2 or 3

Input voltage: AC 90V-240V

Power: 15W

Dimension: 295mm*185mm*45mm

Weight: 1.45Kg

________________________________________

Model.

WB(E)-6800-2 Two-axis LED digital readout(DRO)
